Aorus Mini-ITX Motherboards: VRM, Chipset, and Spec Breakdown

As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.

Aorus has earned a distinct reputation in the small form factor enthusiast space by engineering dense, highly capable Mini-ITX motherboards that refuse to compromise on power delivery or thermal management. Building a high-performance system within a 170-millimeter square footprint requires rigid voltage regulation, thick multi-layered circuit boards, and dedicated heatsink structures to keep high-wattage processors stable under prolonged computing workloads. Rather than stripping away premium desktop features, Aorus integrates direct digital power phases, reinforced expansion slots, and multi-layer thermal guards that ensure compact gaming rigs and portable workstations run at their intended potential.

Across the current catalog, these boards divide clearly across distinct socket architectures spanning AMD AM4, AMD AM5, Intel LGA 1700, and Intel LGA 1851, varying primarily by their power stage amperages, DDR4 versus DDR5 memory standard, and the inclusion of next-generation features like Wi-Fi 7 and Thunderbolt 4. Analyzing this aorus mini itx comparison reveals how each model addresses specific thermal, generational, and bandwidth targets for custom small form factor builds.

Aorus Mini-ITX Motherboards Compared

01GIGABYTE B850I AORUS PRO AMD AM5 for Modern AM5 SFF Gaming

Best for: Mainstream AMD Ryzen 9000 SFF gaming builds

Pros

• 80A Smart Power Stages
• Modern Wi-Fi 7 connectivity
• Full PCIe 5.0 graphics interface

Cons

• Base 5200 MHz memory listing
• Two DIMM slot configuration limit

The GIGABYTE B850I AORUS PRO AMD AM5 represents a streamlined, modern foundation for compact gaming systems built around the AMD B850 chipset. It supports AMD Ryzen 9000, 8000, and 7000 series processors on Socket AM5, giving enthusiasts an up-to-date board for multi-core desktop computing. Power delivery centers on an 8+2+1 power phase design utilizing 80A Smart Power Stages, engineered to supply clean current to high-efficiency Ryzen processors while maintaining manageable heat output within confined small form factor enclosures.

Component cooling is managed through an integrated VRM and M.2 Thermal Guard assembly, preventing thermal throttling on internal NVMe solid-state drives. In terms of expansion, the board offers a primary PCIe 5.0 graphics interface, dual M.2 slots for high-speed storage, DDR5 memory support across two DIMM slots with capacity up to 128 GB, and a 5200 MHz memory clock speed specification. Rear and internal connectivity features modern USB-C ports, an EZ-Latch mechanism for easier component swapping, 2.5GbE LAN, Wi-Fi 7 wireless networking, and a 5-year warranty for extended reliability.

This motherboard suits builders assembling a balanced, current-generation AMD gaming rig who prioritize modern Wi-Fi 7 wireless performance and PCIe 5.0 readiness without paying for extreme overclocking circuitry. For users planning to run top-tier 16-core flagship CPUs under continuous heavy production workloads, this model yields to the higher amperage headroom found on the X870I AORUS PRO ICE.

02GIGABYTE X870I AORUS PRO ICE AMD for Flagship Overclocking and Clean Aesthetics

Best for: Flagship AM5 overclockers and white chassis builders

Pros

• Heavy 110A Smart Power Stages
• Front and rear USB-C ports
• Integrated Wi-Fi 7 and 2.5GbE

Cons

• Overkill VRM for mid-range CPUs
• Base 5200 MHz memory rating

Engineered for high-demand compact rigs, the GIGABYTE X870I AORUS PRO ICE AMD brings extreme power delivery and distinctive white-and-silver styling to the Socket AM5 (LGA 1718) ecosystem. Built around the enthusiast AMD X870 chipset, this board supports AMD Ryzen 9000, 8000, and 7000 series processors. Its defining engineering feature is an advanced 8+2+1 power phase design built with massive 110A Smart Power Stages, providing immense electrical stability for high-draw multi-threaded workloads in tight chassis.

Memory handling supports two DDR5 DIMM slots with AMD EXPO compatibility, reaching capacities up to 128 GB at a 5200 MHz clock speed rating. High-speed system expansion relies on a PCIe 5.0 interface alongside two M.2 storage slots. Builders benefit from an extensive DIY-friendly layout, including M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, and a dedicated EZ-Debug Zone for rapid troubleshooting. Both front and rear USB-C connectivity are provided, complemented by 2.5GbE wired LAN, next-generation Wi-Fi 7 networking, and a 5-year warranty.

This aorus am5 mini itx motherboard is ideal for enthusiasts running top-tier Ryzen 9 processors who demand maximum VRM amperage ceilings and seamless hardware maintenance inside complex custom loops or white-themed cases. Builders on modest configurations not requiring 110A power stages or dual USB-C interfaces can comfortably step down to the B850I variant.

03GIGABYTE B760I AORUS PRO for 12th to 14th Gen Intel Core Builds

Best for: Intel 12th to 14th Gen Core systems

Pros

• Direct 8+1+1 digital VRM
• Ten-layer PCB construction
• Dual PCIe 4.0 M.2 slots

Cons

• Lacks PCIe 5.0 expansion
• LGA 1700 platform lacks future upgrades

The GIGABYTE B760I AORUS PRO delivers a stable, capable foundation for builders utilizing Intel LGA 1700 desktop processors. With native support for 14th, 13th, and 12th Gen Intel Core processors on the Intel B760 chipset, this model brings digital precision to compact Intel systems. Power delivery is driven by a direct 8+1+1 digital VRM solution constructed on a dense 10-layer PCB, utilizing premium chokes and capacitors to maintain consistent voltage regulation under sustained processor loads.

Thermal control is reinforced by Advanced Thermal Armor featuring an advanced VRM heatsink, multi-layered M.2 heatsinks, and an integrated I/O shield that accelerates small form factor chassis assembly. Memory support covers DDR5 with Intel XMP memory module support, rated for 4800 MHz with up to 128 GB total capacity. Expansion includes one PCIe 4.0 x16 slot reinforced with PCIe Ultra Durable armor, two PCIe 4.0 M.2 slots, Intel 2.5GbE LAN, Wi-Fi 6E, Q-Flash Plus, and comprehensive USB ports including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 3.2 Gen 1 ports.

This board is specifically designed for users assembling a capable Intel LGA 1700 gaming machine or workstation who want proven DDR5 performance and extensive rear panel USB connectivity. It yields to the newer B860I AORUS PRO ICE when transitioning to the latest Intel Core Ultra Series 2 processors that utilize the LGA 1851 socket.

04GIGABYTE B650I AORUS Ultra AMD AM5 for High-Speed Memory Tuning

Best for: Memory overclockers wanting active drive cooling

Pros

• Certified 7200 MHz DDR5 support
• Active M.2 Thermal Guard III
• Dense 12-layer copper PCB

Cons

• Limited to Wi-Fi 6E networking
• Active heatsink fan adds complexity

The GIGABYTE B650I AORUS Ultra AMD AM5 is an extensively engineered platform built on the AMD B650 chipset for Socket AM5 systems. Designed to host AMD Ryzen 9000, 8000, and 7000 series processors, it features a direct 8+2+1 phases digital VRM solution implemented on a premium 12-layer PCB containing 2X copper layers. This dense physical layering helps dissipate thermal energy across the substrate while maintaining signal integrity for sensitive memory tracks.

Thermal engineering on this model is particularly aggressive, incorporating an extended VRM heatsink with an integrated heatpipe, fully covered MOSFET heatsinks, and an M.2 Thermal Guard III module with active cooling alongside Ultra Durable memory armor. For system memory, the board supports two surface-mount DDR5 DIMMs with both AMD EXPO and Intel XMP profiles, reaching exceptional clock speeds up to 7200 MHz and a maximum capacity of 128 GB. High-speed connectivity includes PCIe 5.0 graphics bandwidth, dual M.2 NVMe storage slots, USB 3.2 Gen 2 Type-C with DisplayPort Alternate Mode, Wi-Fi 6E, 2.5GbE LAN, EZ-Latch, Q-Flash, and RGB Fusion lighting control.

Builders weighing alternative platforms who have researched an asus itx motherboard am5 setup will appreciate the B650I Ultra for its active M.2 cooling and certified 7200 MHz memory support. It is the best match for enthusiasts focused on high-frequency DDR5 memory tuning, though users wanting native Wi-Fi 7 will prefer the newer B850I or X870I revisions.

05GIGABYTE B860I AORUS PRO ICE Intel for Intel Core Ultra Series 2

Best for: Intel Core Ultra Series 2 creators

Pros

• Native Thunderbolt 4 port
• Robust 8+1+2+1 80A VRM
• Cutting-edge Wi-Fi 7 networking

Cons

• Exclusive to LGA 1851 socket
• Listing specifies 5600 MHz memory rate

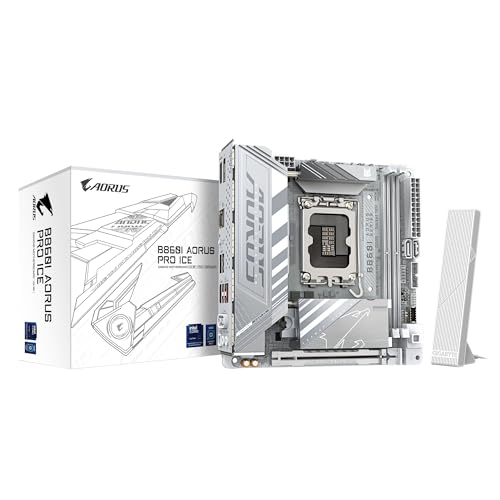

Constructed around the modern Intel B860 chipset and the LGA 1851 socket, the GIGABYTE B860I AORUS PRO ICE Intel brings advanced architectural capabilities to Intel Core Ultra Processors (Series 2). Finished in an ICE aesthetic, it integrates an 8+1+2+1 power phase design built around 80A Smart Power Stage VRMs. This configuration provides the precise voltage rails required by Intel’s newest multi-tile architectures while maintaining thermal efficiency in space-restricted computer cases.

Thermal mitigation is handled by the VRM Thermal Armor Advanced cooling array paired with dedicated M.2 Thermal Guard heatsinks. Expansion and data transfer lanes feature a PCIe 5.0 interface for next-generation discrete graphics cards and dual M.2 solid-state drive slots. External connectivity is particularly robust, providing ten total ports including eight USB ports, high-bandwidth Thunderbolt 4 connectivity, cutting-edge Wi-Fi 7 wireless networking, 2.5GbE wired LAN, and an EZ-Latch mechanism. Memory support spans two DDR5 DIMM slots rated for 5600 MHz clock speeds.

This motherboard is targeted directly at enthusiasts and creative professionals assembling an Intel Core Ultra Series 2 build who require native Thunderbolt 4 throughput for rapid external drive transfers and docking stations. It gives way to the B760I AORUS PRO for users working with legacy 12th, 13th, or 14th Gen Intel Core processors.

06GIGABYTE B550I AORUS PRO AX AMD for Proven AM4 Compact Rigs

Best for: Budget-conscious AM4 builders utilizing DDR4 RAM

Pros

• Direct 8-phase power delivery
• Reinforced PCIe 4.0 GPU slot
• Protective aluminum backplate

Cons

• Older AM4 socket platform
• Restricted to DDR4 memory speeds

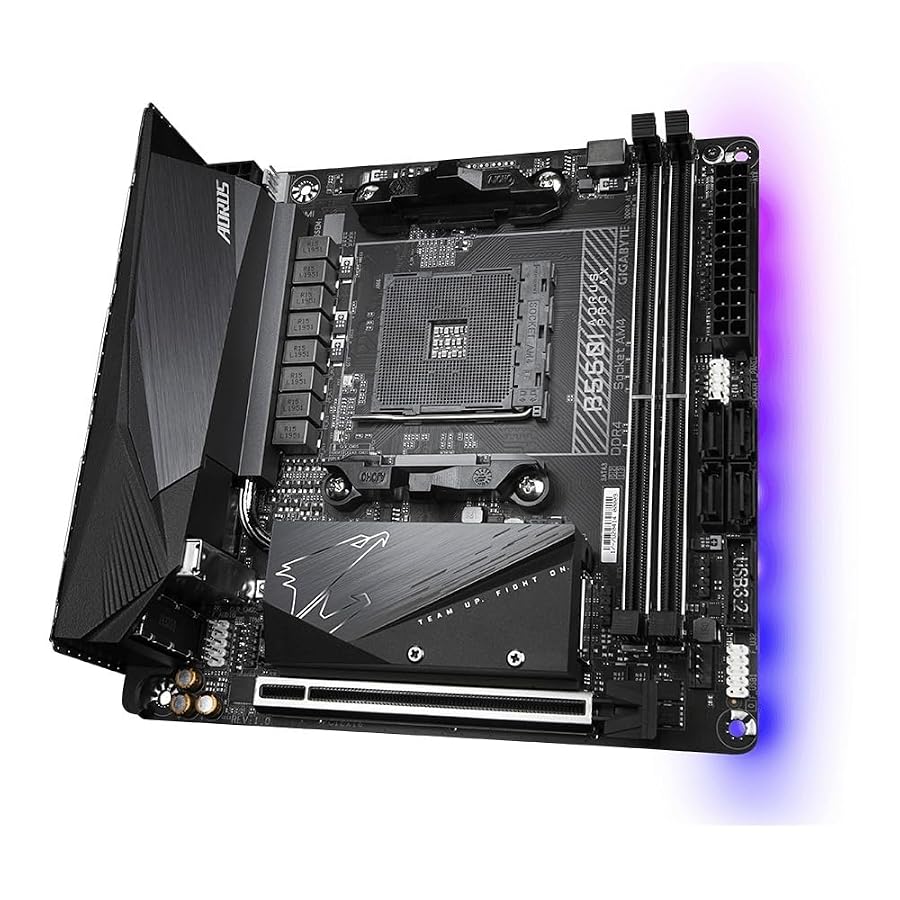

The GIGABYTE B550I AORUS PRO AX AMD is a proven, reliable solution built on the AMD B550 chipset for Socket AM4 systems. Supporting AMD Ryzen 5000, 4000, and 3000 series processors, it provides a stable foundation for compact systems utilizing DDR4 memory. Power delivery relies on a pure digital direct 8 power phase design (with listing specifications highlighting a 6+2 phase implementation) assembled across an 8-layer PCB using premium chokes and capacitors for steady electrical performance.

Heat dissipation is reinforced by an extended VRM heatsink and an integrated aluminum backplate, which provides structural rigidity while extracting thermal buildup from the rear of the motherboard. Storage and graphics interfaces include one PCIe 4.0 x16 slot with reinforced PCIe Ultra Durable armor, one PCIe 4.0 M.2 slot, and a second PCIe 3.0 M.2 slot. Memory support accommodates two DDR4 DIMMs up to 128 GB at 3200 MHz with Extreme Memory Profile support. Networking and I/O features include Wi-Fi 6, 2.5GbE LAN, Q-Flash Plus, Wi-Fi EZ-Plug, RGB Fusion, and a USB suite containing USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A, and four USB 3.2 Gen 1 Type-A ports.

This board is an excellent choice for budget-conscious builders assembling a secondary compact PC, a home media server, or repurposing existing AM4 processors and DDR4 RAM. It concedes modern DDR5 memory support, Wi-Fi 7 networking, and PCIe 5.0 throughput to the newer AM5 models in the lineup.

How to Choose the Right Aorus Mini-ITX Motherboard

Selecting the optimal board from this lineup requires matching your CPU architecture, chassis airflow constraints, and external bandwidth requirements against the specific aorus itx motherboard specs provided across each model generation. The processor socket represents the initial dividing line: builders using AMD Ryzen 9000, 8000, or 7000 processors require Socket AM5 options like the B850I AORUS PRO, X870I AORUS PRO ICE, or B650I AORUS Ultra. In contrast, those building around Intel Core Ultra Series 2 chips must select the LGA 1851 socket on the B860I AORUS PRO ICE, while 12th to 14th Gen Intel Core builders need the LGA 1700 socket on the B760I AORUS PRO. Legacy builders retaining DDR4 hardware will focus strictly on the AM4-based B550I AORUS PRO AX.

Voltage regulation module capacity determines how well each board sustains high-wattage multi-core workloads in compact enclosures. If you are configuring a system with demanding multi-threaded tasks or manual processor tuning, the X870I AORUS PRO ICE provides the highest ceiling with its 110A Smart Power Stages. For balanced gaming setups, the 80A Smart Power Stages on the B850I and B860I offer ample current stability without generating unnecessary excess heat. Users operating in extremely small, sandwich-style cases should also inspect PCB density, where the 12-layer construction and active M.2 cooling of the B650I Ultra provide superior localized thermal control.

When configuring an SFF desk environment, rear panel connectivity and networking standards become essential considerations. Content creators configuring compact production setups alongside an insta 360 tripod for multi-angle recording will benefit substantially from the dedicated Thunderbolt 4 connection and eight USB ports on the B860I AORUS PRO ICE. For cutting-edge local wireless transfer speeds, the Wi-Fi 7 integration on the B850I, X870I, and B860I models outpaces the Wi-Fi 6E and Wi-Fi 6 implementations found on older revisions.

Finally, consider internal drive expansion and chassis assembly convenience. All six models feature dual M.2 storage slots, but bandwidth varies: the B850I, X870I, and B650I offer PCIe 5.0 or high-speed NVMe configurations, whereas the B550I splits bandwidth between PCIe 4.0 and PCIe 3.0 speeds. If rapid assembly and component maintenance without micro-screws matter to your build process, models featuring M.2 EZ-Latch and PCIe EZ-Latch simplify hardware changes within tight chassis confines.

FAQ

Which Aorus Mini-ITX motherboard should I buy for a Ryzen 9000 series processor?

For an AMD Ryzen 9000 series build, you can select the GIGABYTE B850I AORUS PRO AMD AM5, GIGABYTE X870I AORUS PRO ICE AMD, or GIGABYTE B650I AORUS Ultra AMD AM5. The B850I represents the balanced choice with modern Wi-Fi 7 and PCIe 5.0 support, while the X870I provides heavier 110A power stages for intensive multi-threaded workloads.

What is the difference between 80A and 110A Smart Power Stages on Aorus ITX boards?

The amperage rating indicates the continuous current handling capacity of the integrated MOSFETs within the voltage regulation module. The 110A stages on the X870I AORUS PRO ICE handle greater electrical current with less electrical strain, which translates into lower operating temperatures when powering power-hungry processors compared to 80A stages found on mainstream models.

Do Aorus Mini-ITX motherboards support dual M.2 solid-state drives?

Yes, all six motherboards reviewed in this lineup feature two M.2 solid-state drive slots. On modern platforms like the B850I, X870I, and B860I, both slots deliver high-speed NVMe performance protected by integrated thermal guards, while the legacy B550I provides one PCIe 4.0 slot and one PCIe 3.0 slot.

What distinguishes the ICE branded Aorus motherboards?

The ICE designation indicates specialized aesthetic styling featuring light silver and white heatsinks, integrated thermal armor, and coordinated PCB accents. Models like the X870I AORUS PRO ICE and B860I AORUS PRO ICE also incorporate DIY-friendly features such as EZ-Latch mechanisms and modern Wi-Fi 7 networking alongside their distinctive appearance.

Can I use DDR4 memory on an Aorus AM5 or Intel LGA 1851 motherboard?

No, Socket AM5 motherboards and Intel LGA 1851 motherboards in this lineup exclusively support DDR5 memory modules. If you need a Mini-ITX motherboard compatible with DDR4 memory, the GIGABYTE B550I AORUS PRO AX AMD is the dedicated DDR4 model in this selection.
