ELAC has earned widespread distinction among audio engineers and home theater enthusiasts for building center speakers with rigid driver materials, controlled dispersion, and low-resonance cabinets. In any multi-channel soundstage, the center transducer shoulders the heaviest acoustic workload, anchoring dialogue, on-screen action, and front panning effects. Selecting an elac center channel speaker ensures clear vocal articulation and cohesive front-stage acoustic integration.

These six models diverge primarily across driver topologies—contrasting two-way dual-woofer arrays against true three-way concentric systems—while offering cabinet loading options ranging from front-firing ports and sealed enclosures to dual flared slot ports. An architectural elac center channel speaker comparison clarifies the key trade-offs in off-axis dispersion, cabinet dimensions, and amplifier impedance loading across varied room environments.

ELAC Center Channel Speakers Compared

01ELAC Debut 2.0 C5.2 Center Channel for Compact Dual-Woofer Clarity

Best for: Everyday living room multi-channel dialogue clarity

Pros

• Cloth dome waveguide directivity
• Front-firing dual reflex ports
• Rigid aramid-fiber woofers

Cons

• Two-way horizontal lobing limits
• Vinyl cabinet exterior

The ELAC Debut 2.0 C5.2 Center Channel is a 2-way bass reflex speaker designed for articulate dialogue in modest home theater environments. It pairs dual 5.25-inch woven aramid-fiber woofers with a 1-inch cloth dome tweeter. The woven aramid cone material delivers superior stiffness and damping compared to standard paper or polypropylene, yielding smooth, extended low frequencies without cone breakup. A wide-roll surround and waveguide extend high frequencies up to 35,000 Hz while controlling directivity.

Cabinet construction utilizes thick, internally braced MDF finished in black ash vinyl, suppressing cabinet resonances that distort speech fundamentals. Dual front-firing ports permit placement directly against rear walls or inside media consoles without generating boomy acoustic reflections. ELAC optimized its electrical sensitivity and impedance curve to reduce receiver power draw, maximizing dynamic output from modest amplifiers. The listing specifies tabletop mounting, touch controls, and a 7.09-inch speaker size.

This elac debut 2.0 c5.2 suits listeners prioritizing clear speech in standard media rooms. It yields to the Debut 3.0 DC63-BK when larger 6.5-inch woofers are required to pressurize expansive living areas.

02ELAC Uni-Fi 2.0 UC52 Center Speaker for Pinpoint Midrange Dispersion

Best for: Wide multi-seat home theater installations

Pros

• True 3-way concentric array
• Triple aluminum cone woofers
• Front-firing bass reflex ports

Cons

• 6-Ohm amplifier current requirement

The ELAC Uni-Fi 2.0 UC52 Center Speaker features a true 3-way speaker design engineered to resolve horizontal lobing issues common to conventional center speakers. Its primary transducer is a concentric driver combining a 1-inch wide-roll surround tweeter positioned directly inside the apex of a 4-inch aluminum midrange cone. This co-axial layout aligns acoustic centers along a single axis, producing uniform off-axis dispersion so off-center viewers experience the same clarity as listeners in the sweet spot.

Frequencies below the midrange crossover are handled by triple single-piece aluminum cone 5.25-inch bass drivers. Dual front-firing ports allow boundary-adjacent console installation without wall-induced acoustic boom. Connectivity relies on 5-way binding posts, while listing specifications note an aluminum enclosure, tabletop mounting, remote control method, surround audio mode, and a built-in microphone. Its 6-Ohm nominal impedance ensures compatibility with multi-channel AV receivers that handle moderate current loads.

Operating as a dedicated elac 3-way center channel speaker, the elac uni-fi 2.0 uc52 is ideal for wide seating arrangements. It gives way to the Uni-Fi Reference series when cast-chassis drivers and luxury finishes take priority.

03ELAC Debut 3.0 DC63-BK Center Channel for Large-Format Dynamics

Best for: Enclosed media cabinetry and tight shelf spaces

Pros

• Sealed enclosure eliminates wall boom
• Aluminum dome tweeter clarity
• Furniture-grade walnut aesthetic

Cons

• Bass response rolls off at 57 Hz

Best for: Large listening rooms demanding high dynamic output

Pros

• Dual 6.5-inch aramid woofers
• Sealed cabinet boundary flexibility
• Waveguide with integrated phase plug

Cons

• Substantial 7.7-inch speaker height

The ELAC Debut 3.0 DC63-BK Center Channel combines large driver displacement with versatile enclosure engineering for demanding multi-channel setups. It features dual 6.5-inch woven aramid-fiber woofers and a 1-inch aluminum dome tweeter. While the listing title notes a 2-way bass reflex design, its detailed specifications emphasize a sealed cabinet structure. This sealed architecture eliminates rear port turbulence, permitting flush wall placement or enclosed console installation without boomy acoustic loading.

High-frequency reproduction relies on an aluminum dome tweeter equipped with a custom waveguide and phase plug, expanding horizontal dispersion across a 50 Hz to 38,000 Hz frequency response. Robust internal bracing reinforces the Black Ash cabinet to suppress panel vibrations, while magnetically attached grilles maintain a clean baffle. Its easy-to-drive impedance profile allows standard receivers to produce authoritative dynamic swings. Tabletop mounting, limited warranty, and a 7.7-inch speaker size complete the profile.

This elac debut 3.0 dc63 suits enthusiasts seeking impactful, room-filling center performance. It yields to the Debut 3.0 DC53-WN when furniture dimensions require a more compact cabinet profile.

04ELAC Debut 3.0 DC53-WN Center Channel for Boundary-Friendly Placement

The ELAC Debut 3.0 DC53-WN Center Channel integrates Debut 3.0 acoustic engineering into a compact form factor finished in Walnut. It utilizes dual 5.25-inch woven aramid-fiber woofers alongside a 1-inch aluminum dome tweeter, achieving a frequency response from 57 Hz to 38,000 Hz. The aramid-fiber cone material provides substantial rigidity and internal damping, outperforming polypropylene or paper cones in maintaining structural stability during dynamic audio peaks.

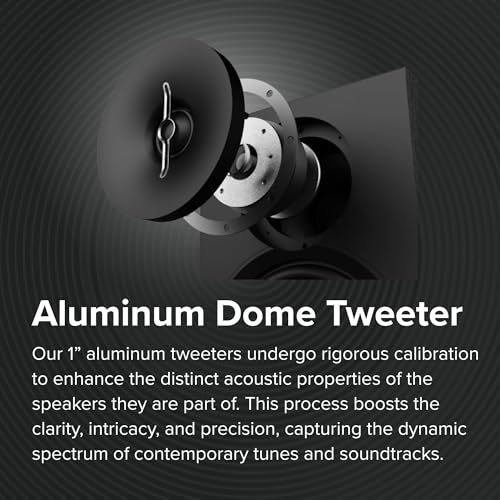

Enclosure engineering centers on a sealed cabinet supported by internal bracing, eliminating port chuffing and wall-boundary coloration when installed inside entertainment centers or against drywall. The aluminum dome tweeter features an integrated phase plug and waveguide that widen the listening soundstage. Specifications list stereo audio output, Hi-Res Audio support, tabletop mounting, limited warranty coverage, and a 9.2-inch speaker size.

As a balanced elac home theater center speaker, the elac debut 3.0 dc53 suits spaces requiring clean vocal reproduction within tight shelving. It steps aside for the DC63-BK when low frequencies below 57 Hz and larger 6.5-inch woofers are required.

05ELAC Uni-Fi Reference 3-Way 5-1 4″ for High-Fidelity Vocal Resolution

Best for: Audiophile surround systems prioritizing vocal precision

Pros

• Concentric 3-way driver topology
• Cast chassis woofer frames
• Dual flared slot vent design

Cons

• Requires high-current amplification

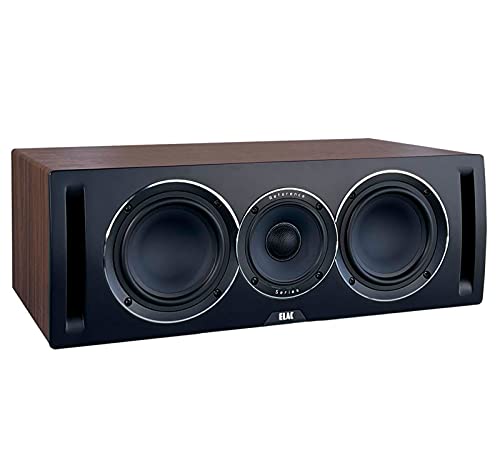

The ELAC Uni-Fi Reference 3-Way 5-1 4″ is an advanced loudspeaker designed for audiophile-grade multi-channel reproduction. Operating as a true 3-way speaker design, it separates bass, midrange, and treble frequency bands across dedicated drivers to minimize intermodulation distortion. A concentric tweeter driver places the high-frequency element at the apex of the midrange cone, ensuring coherent off-axis dispersion, precise imaging, and reduced acoustic interference from room side boundaries.

Low-frequency duties are handled by cast chassis 5.25-inch woofers that enhance front baffle rigidity and suppress frame resonance during high-excursion peaks. The enclosure incorporates a dual flared slot port that minimizes aerodynamic airflow noise while increasing dynamic bass output. The cabinet features an aluminum enclosure with a painted front baffle and Black/Walnut sides. Listing specifications note floor mount placement, touch controls, full warranty coverage, and a built-in microphone.

Shoppers considering which elac center channel to buy for critical audio listening will appreciate the fidelity of this elac uni-fi reference center. It yields to the Debut 2.0 C5.2 when low receiver current demands and budget limitations take precedence.

06ELAC Dual 4″ Center Speaker for Slim Console Integration

Best for: Low-profile TV stands and secondary rooms

Pros

• Easy-to-drive 8 Ohm impedance
• Compact dual 4-inch woofer footprint
• Wide frequency extension to 35,000 Hz

Cons

• 8-watt maximum power rating

The ELAC Dual 4″ Center Speaker provides a low-profile center stage solution built for compact entertainment consoles and shallow shelving. It pairs dual 4-inch polypropylene woofers with a 1-inch soft-dome tweeter to cover a frequency response spanning 50 Hz to 35,000 Hz. The polypropylene cones offer rapid transient tracking and sufficient internal damping to deliver clear, intelligible vocal articulation across cinematic dialogue and musical soundtracks.

A key technical asset is its easy-to-drive 8 Ohm nominal impedance, making it compatible with virtually all standard AV receivers and integrated amplifiers without causing thermal overload. Specifications detail an 8-watt maximum output power rating, Bluetooth connectivity, a 50 Hz frequency response baseline, and surround audio output mode support. Its shallow vertical profile allows it to slide cleanly underneath televisions with minimal clearance.

This compact model serves secondary bedrooms and small media spaces effectively. It gives way to the Debut 2.0 C5.2 and Uni-Fi lines when larger aramid-fiber cones, high dynamic power handling, or true 3-way concentric dispersion are required.

How to Choose the Right ELAC Center Channel Speaker

Selecting an appropriate center speaker requires evaluating driver topology, cabinet port loading, receiver power pairing, and physical cabinet dimensions. The most critical architectural distinction is between two-way MTM driver layouts and three-way concentric configurations. Two-way models, such as the Debut 2.0 C5.2, Debut 3.0 DC53-WN, and Debut 3.0 DC63-BK, place dual woofers alongside a central tweeter. This design generates substantial dynamic punch on-axis, though off-axis listeners may experience minor phase cancellation. Readers comparing alternative brand architectures can consult our klipsch center channel speaker breakdown to evaluate differing horn and driver implementations.

In wider living rooms with multi-seat seating rows, three-way concentric designs like the Uni-Fi 2.0 UC52 and Uni-Fi Reference 3-Way 5-1 4″ deliver superior horizontal dispersion. Because the tweeter sits inside the midrange cone, the driver acts as a point-source radiator, maintaining identical dialogue clarity across all seating angles. Those exploring complementary multi-driver options may also review our polk center channel speaker guide to see how alternative crossover topologies perform.

Cabinet venting dictates placement flexibility. Front-firing ports on the Debut 2.0 C5.2 and Uni-Fi 2.0 UC52 vent bass forward, preventing boomy reflections when placed on open shelves. Sealed enclosures on the Debut 3.0 DC63-BK and DC53-WN eliminate port turbulence entirely, making them ideal for enclosed media furniture or flush wall mounting. The Uni-Fi Reference uses a dual flared slot port to eliminate aerodynamic chuffing under heavy bass excursions.

Receiver power pairing must match the speaker’s electrical demands. The ELAC Dual 4″ Center Speaker features an easy-to-drive 8 Ohm impedance, while the Debut 3.0 lineup is engineered for high amplifier compatibility. Conversely, the 6-Ohm Uni-Fi 2.0 UC52 requires an amplifier with stable current reserves. For broader perspective on multi-channel speaker integration, consult our logitech surround sound speakers analysis.

FAQ

What is the acoustic advantage of an ELAC 3-way center channel speaker over a 2-way model?

A 3-way center speaker divides frequencies among separate bass, midrange, and treble drivers. In horizontal 2-way speakers, dual woofers playing midrange frequencies cause acoustic interference, known as lobing, at off-axis angles. Concentric 3-way models, such as the Uni-Fi 2.0 UC52 and Uni-Fi Reference, mount the tweeter inside the midrange cone to eliminate lobing, preserving dialogue clarity across every seat.

Can ELAC center channel speakers be placed inside an enclosed media console?

Yes, but cabinet acoustic design dictates placement. Sealed models like the Debut 3.0 DC63-BK and Debut 3.0 DC53-WN are ideal for enclosed cabinets because they have no ports to interact with interior cavities. Front-vented models like the Debut 2.0 C5.2 and Uni-Fi 2.0 UC52 also function well on open shelving because air vents forward.

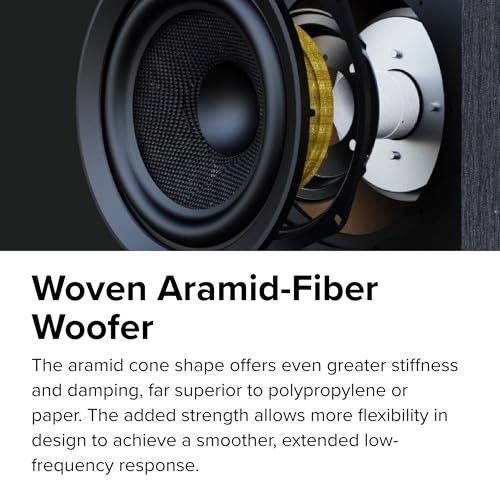

How do woven aramid-fiber woofers compare to polypropylene cones?

Woven aramid fiber, featured on the Debut 2.0 and Debut 3.0 lines, provides higher stiffness-to-weight ratios and damping than standard polypropylene. This stiffness minimizes cone flex during dynamic audio peaks, producing cleaner bass response, lower distortion, and smoother acoustic transitions to the tweeter.

What type of AV receiver is needed to drive a 6-Ohm ELAC center speaker?

A 6-Ohm speaker like the Uni-Fi 2.0 UC52 draws more current than standard 8-Ohm speakers. While most modern AV receivers support 6-Ohm loads, pairing the speaker with an amplifier featuring stable, high-current delivery ensures clean dynamic peaks without distortion during intense action sequences.

What is the purpose of the dual flared slot port on the Uni-Fi Reference?

The dual flared slot port on the Uni-Fi Reference 3-Way 5-1 4″ manages high-velocity airflow from the cabinet interior. Flaring the slot edges reduces boundary layer turbulence and port chuffing noise, ensuring cleaner, higher-output bass dynamics during low-frequency scenes.
